Double Red
Sea-Dweller DRSD 1665 — Double Red

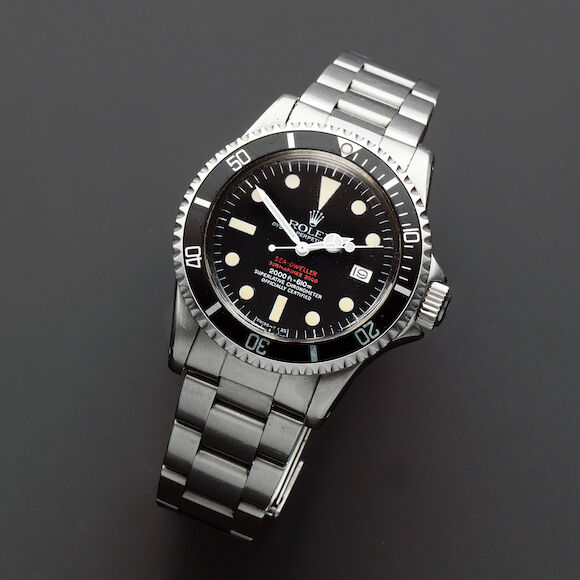

Two red lines – “Sea-Dweller” over “Submariner 2000” – above a white “2000 ft = 610 m”, with painted tritium plots on a matte black dial. Collectors split the dials into Marks by small differences in the red print and the coronet. Casebacks read “Patent Pending” on early watches and “Rolex Patent” from late 1971; the Rolex name runs straight across.
The valve patent (CH492246) was filed on 6 November 1967 and granted in June 1970. Cases up to the 2.9 million batch use casebacks stamped IV.67; a thicker case arrived in the first quarter of 1972 (I.72). Double Red production ran from about 1.7 to 5.1–5.2 million.
Identifying details
- Red “Sea-Dweller”
Model name “Sea-Dweller” printed in red.
- Date
Date display.
- Red “Submariner”
Model name printed in red.
- Helium escape valve
One-way valve on the left flank of the case.
Variants of 1665
Reference overview →| Variant | Production |
|---|---|
| Single Red | 1967–1968 |
| Single Red · Single Red, No Gas Escape Valve | 1967 |
| Single Red · Single Red, With Gas Escape Valve | 1967–1968 |
| Double RedCurrent | 1967–1977 |
Case & movement
- Reference
- 1665
- Production
- 1967–1977
- Case serials
- c. 1.7M–5.2M
- Case material
- Stainless steel
- Case diameter
- 40 mm
- Water resistance
- 610 m
- Crystal
- Domed acrylic, no Cyclops
- Movement
- Automatic
More specifications (3)
- Chronometer
Movement
Rolex 1575
Date caliber with an instantly jumping calendar and no quickset, shared with the GMT-Master, Datejust and early Sea-Dweller. Hacking seconds added in 1971 (HODINKEE’s Submariner guide and Bob’s 1680 guide give 1972). The rotor bridge is marked 1570.
Automatic · Introduced 1965 · 19,800 vph · 48 h reserve
